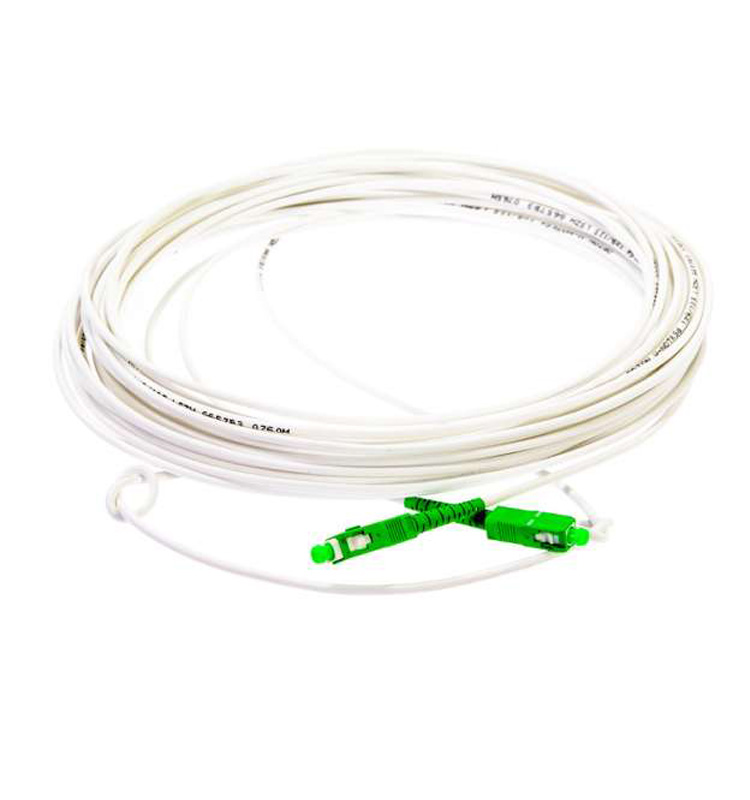

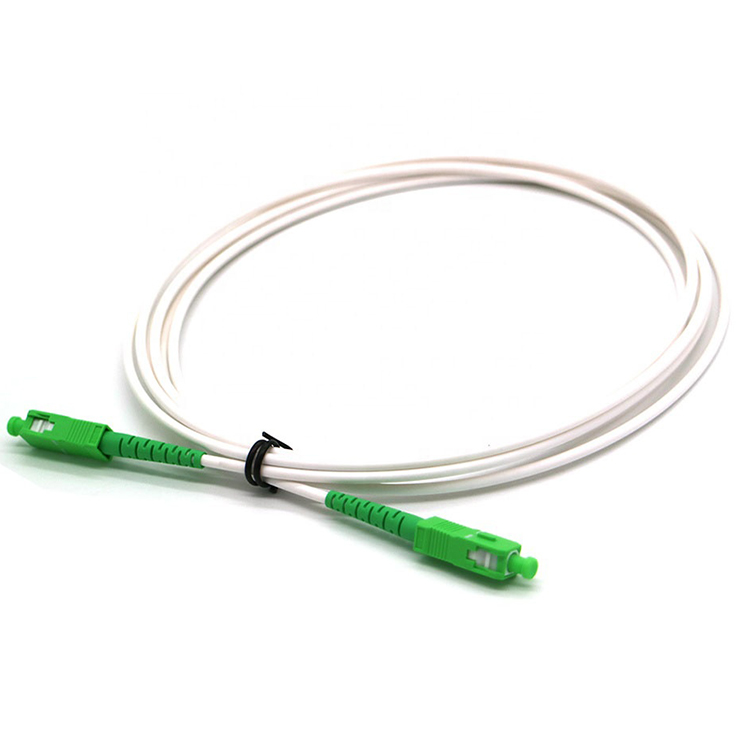

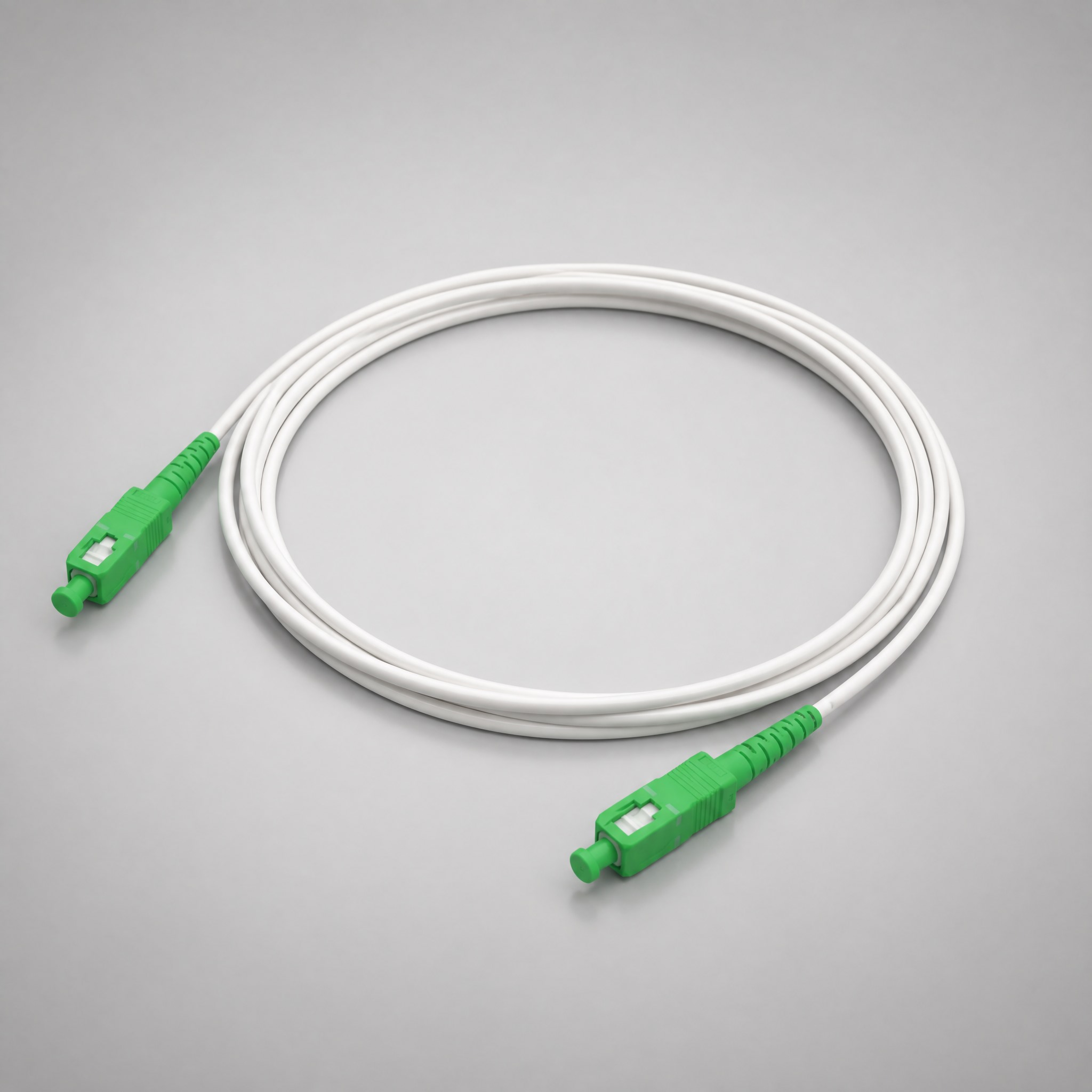

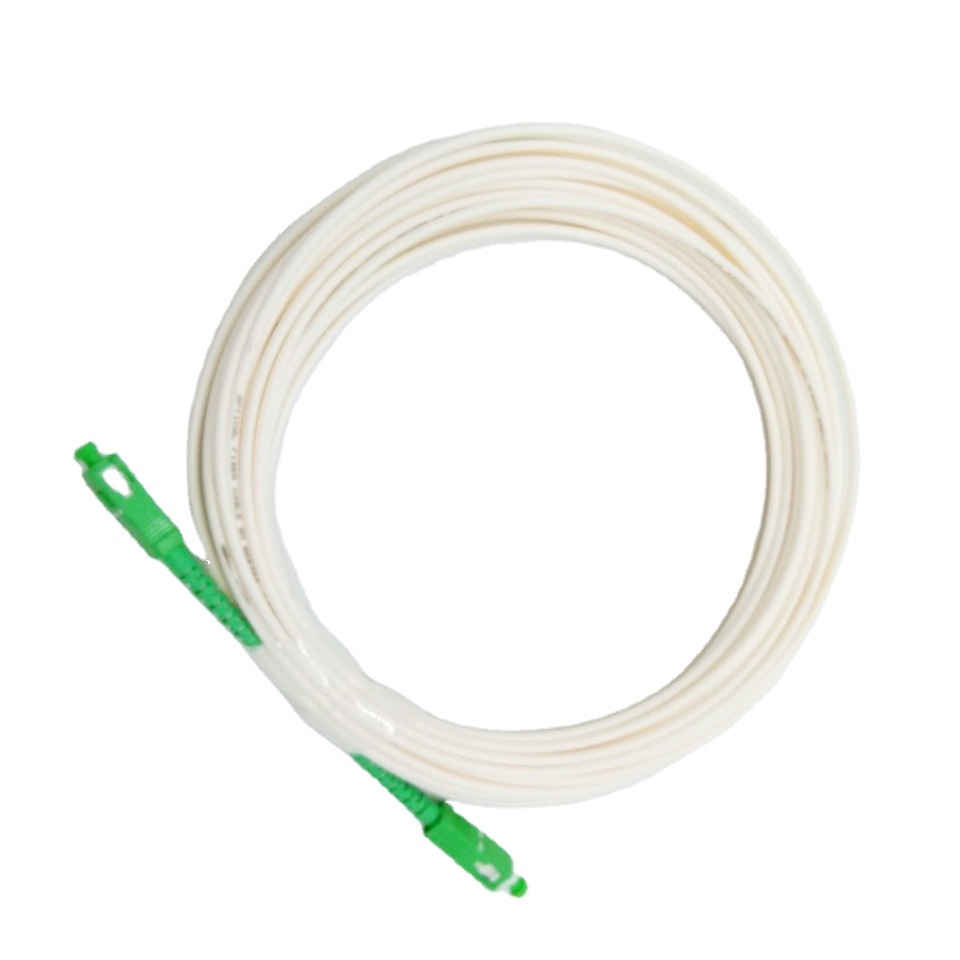

FTTH 3.0mm G657A2 1.5m 2m White Optic Fiber Cable Jumper SC/APC Cordon De Raccordement Fibre Optique
| Parameter | Type | PC | SPC | UPC | APC |
|---|---|---|---|---|---|
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.3dB | ≤0.20dB | ≤0.20dB | ≤0.30dB | |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB | |
| Mating Durability (500 times) | Additional Loss ≤0.1dB, Return Loss Variability <5dB | ||||
| Temperature Stability (-40°C ~ 75°C) | Additional Loss ≤0.1dB, Return Loss Variability <5dB | ||||
| Operating Temperature | -40°C ~ 75°C | ||||
Shenzhen Skylynn Communication Ltd. has CE, RoHS, and ISO9001 certificates. Currently processing the Antel certification.

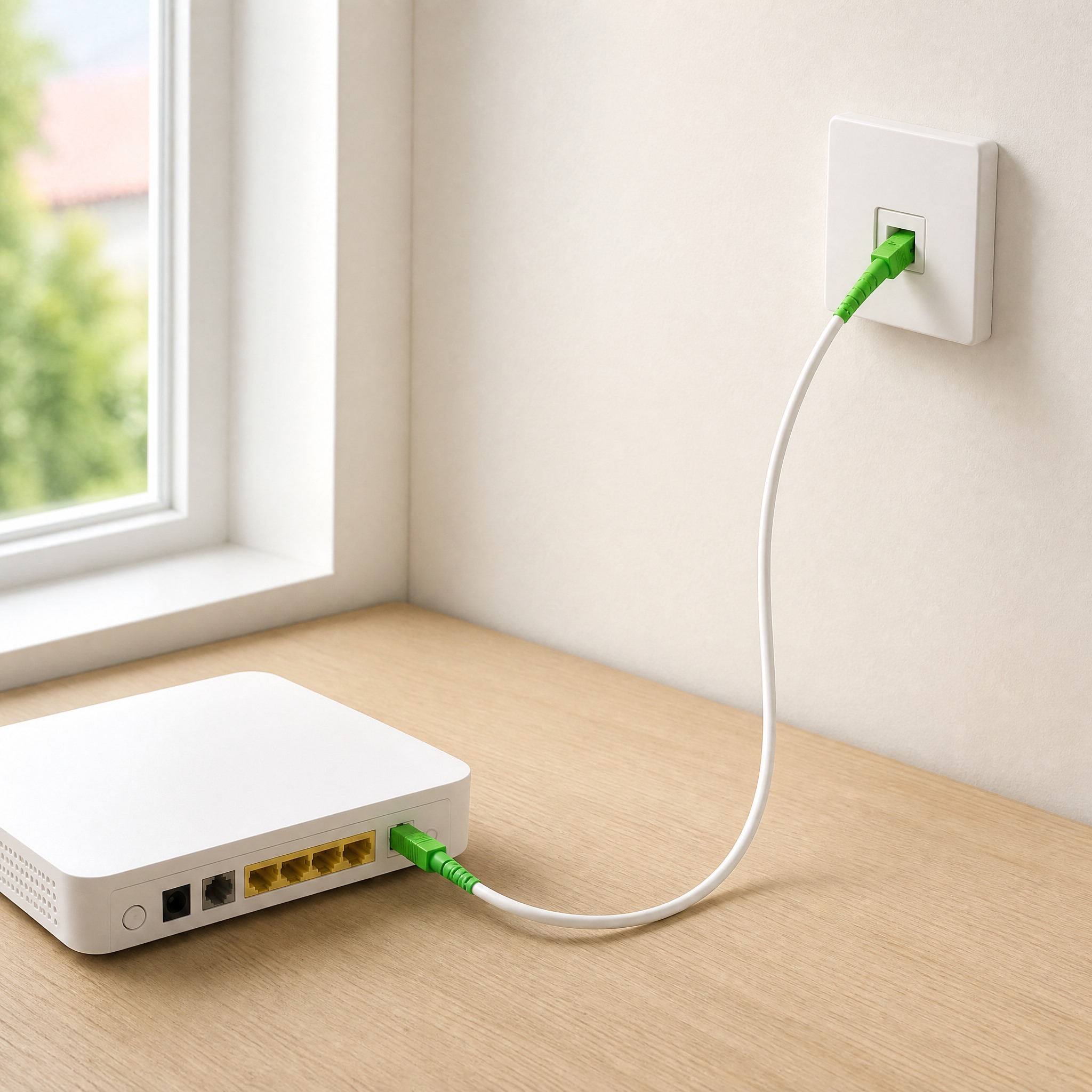

The standard lengths featured are 1.5m and 2m, suitable for indoor FTTH drop cable patching and wall terminal box connections.
G657A2 is bend-insensitive single-mode fiber, allowing significantly smaller bend radiuses without causing high optical attenuation, ideal for tight FTTH installations.

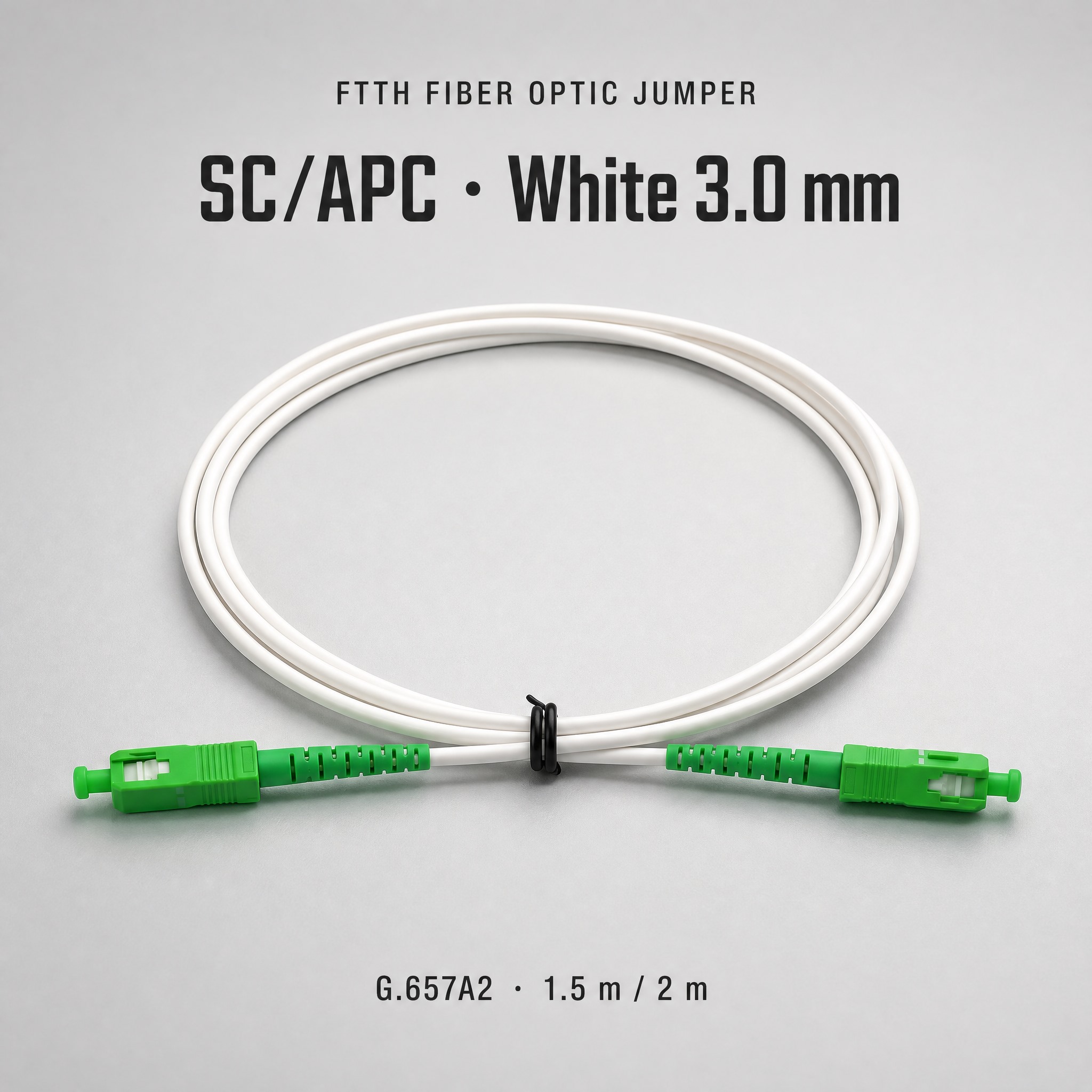

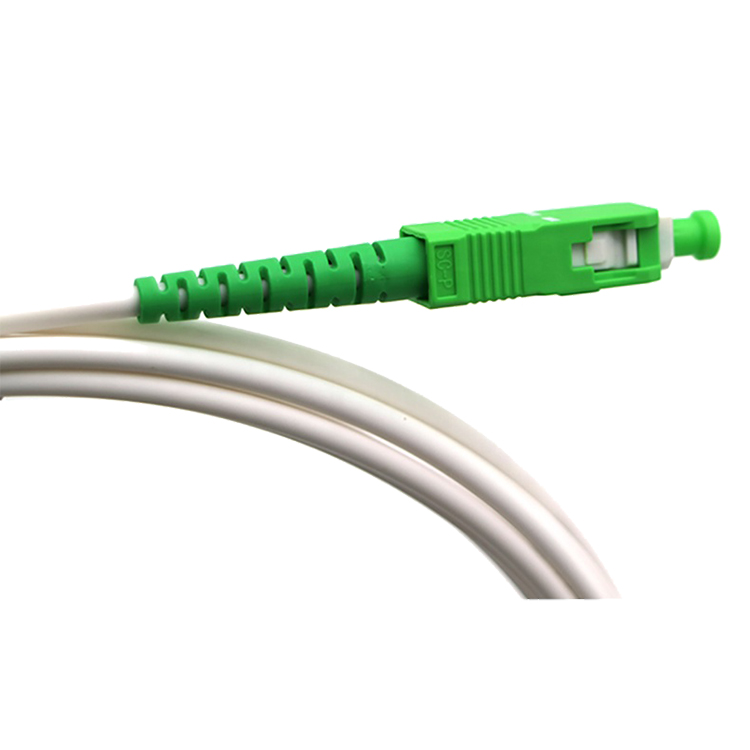

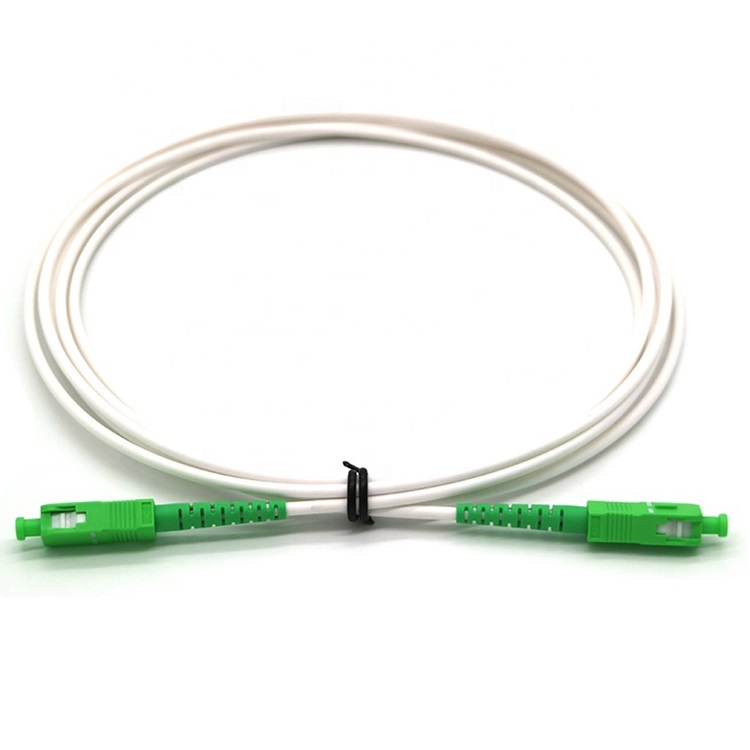

It comes equipped with SC/APC connectors, offering a return loss of ≥65dB to ensure minimal back-reflection and optimal signal clarity.
The jumper has high temperature stability and operates efficiently within the range of -40°C to 75°C.

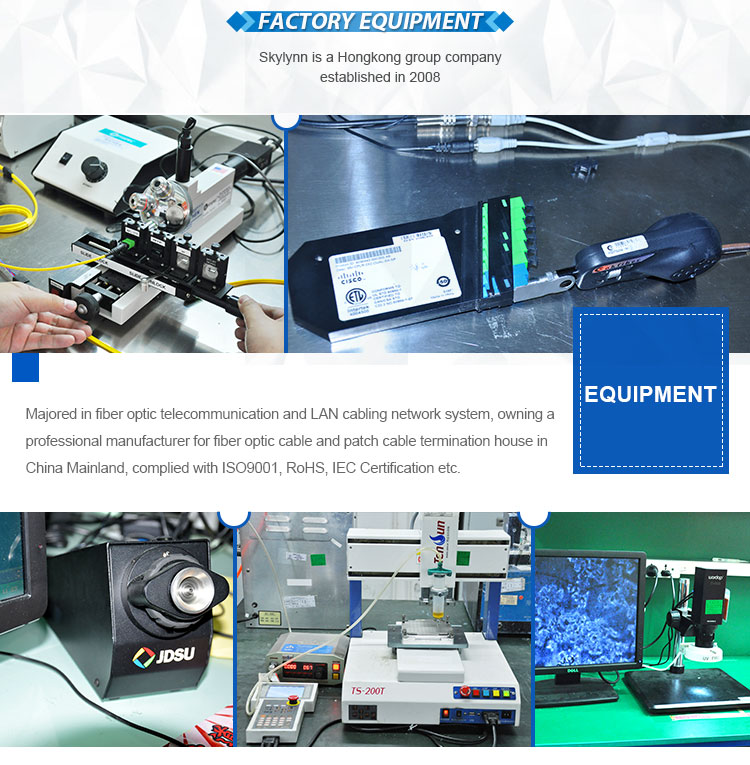

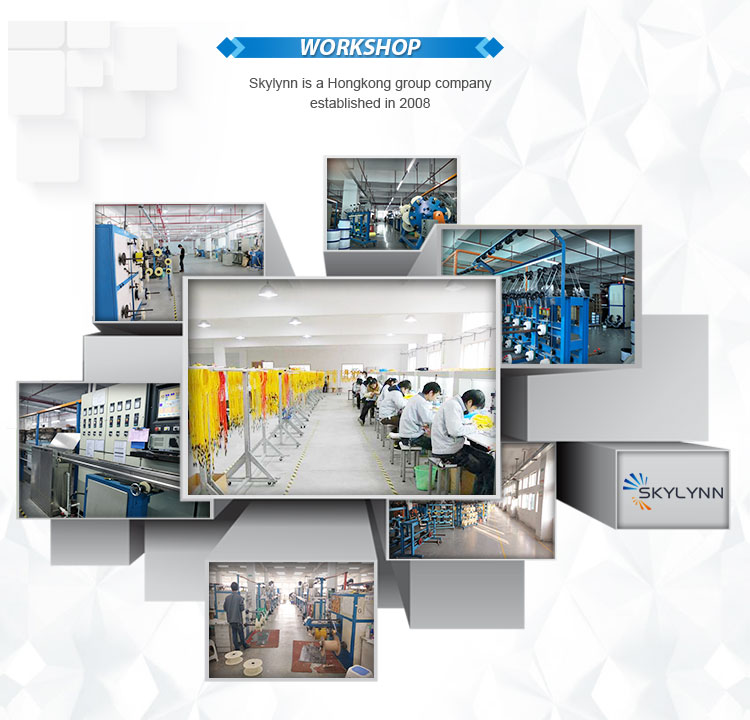

The factory operates under ISO9001 guidelines, and products comply with RoHS and CE standards, with Antel certification processing underway.
The SC connectors endure over 500 mating cycles with an additional insertion loss of ≤0.1dB and return loss variability <5dB.
