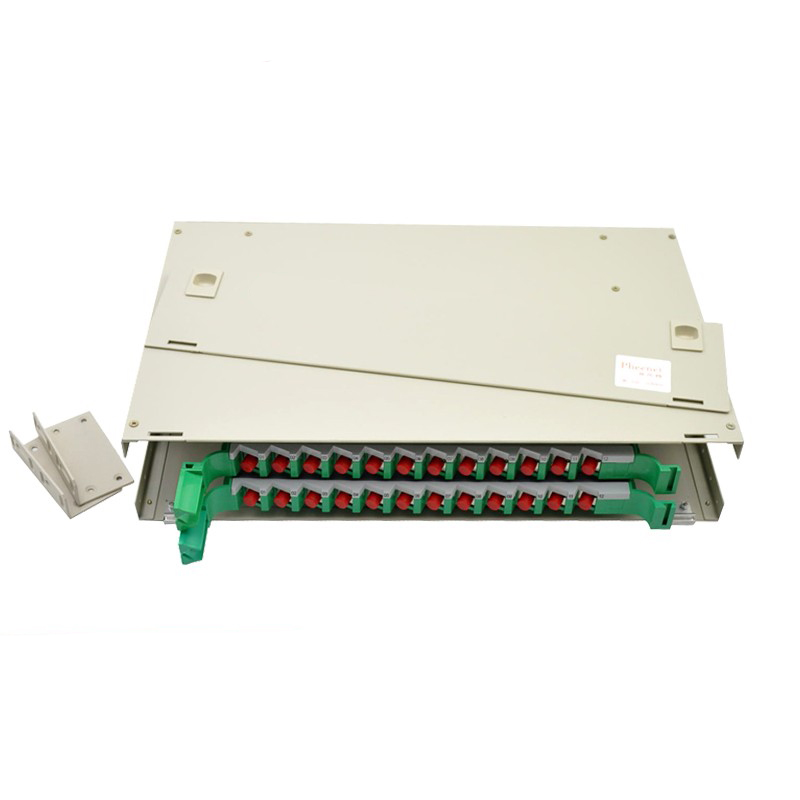

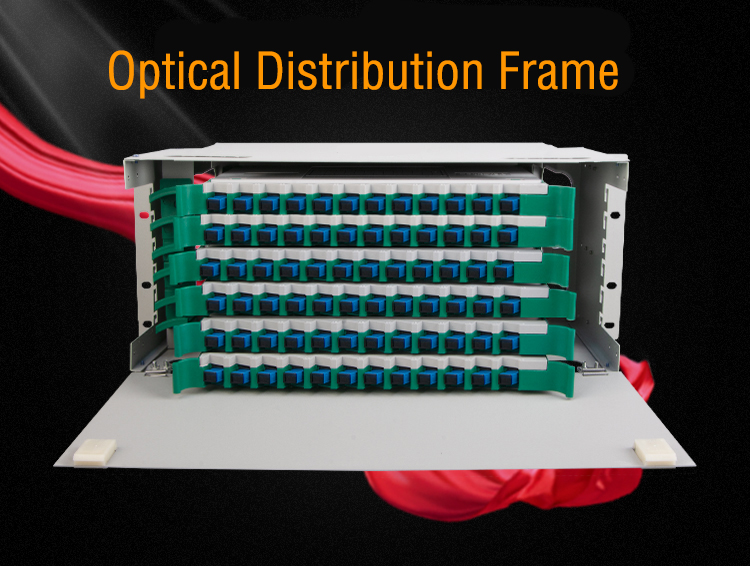

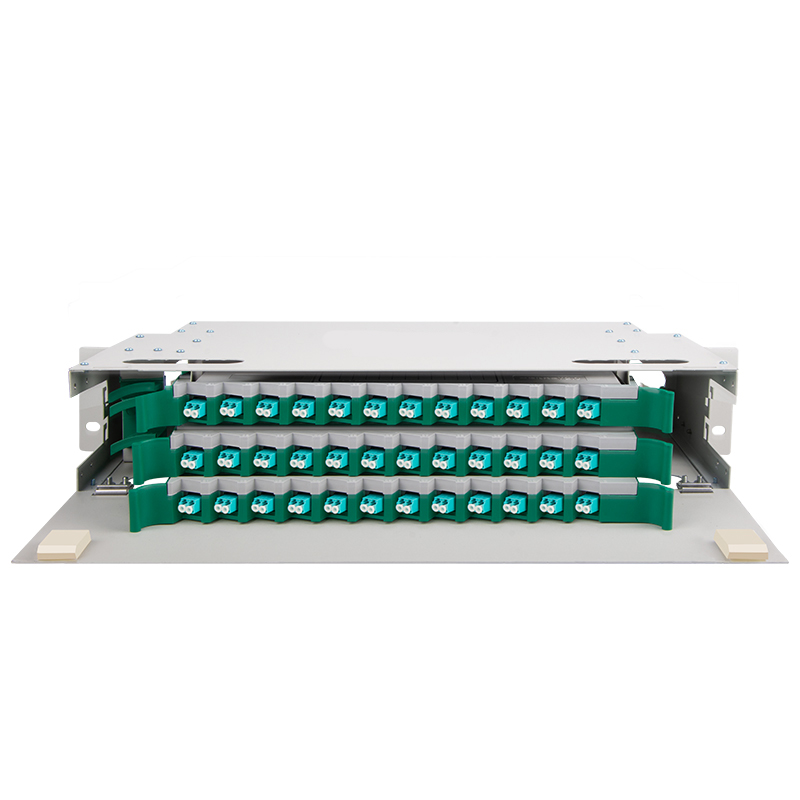

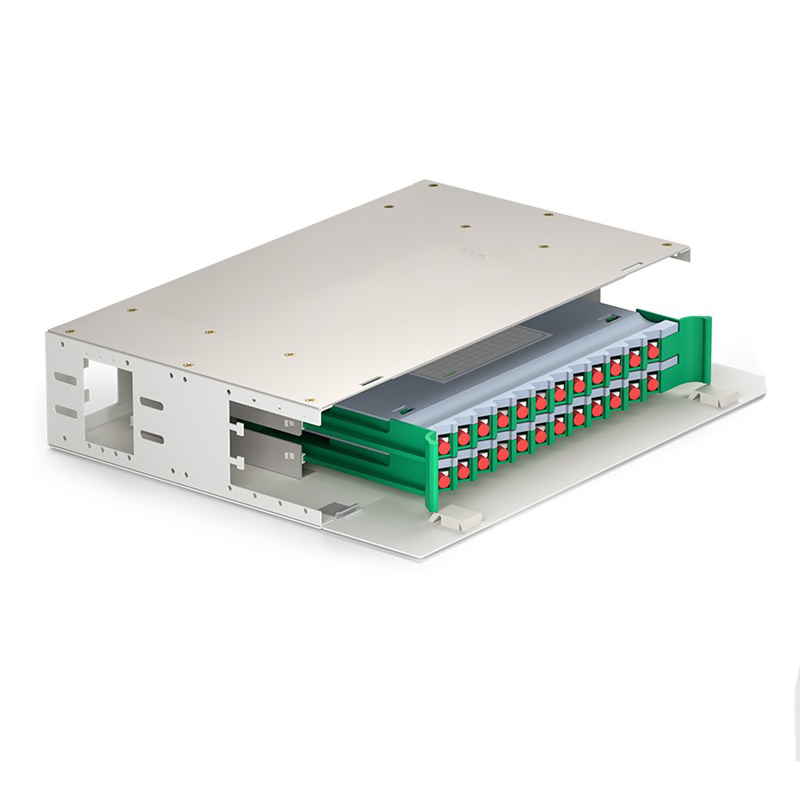

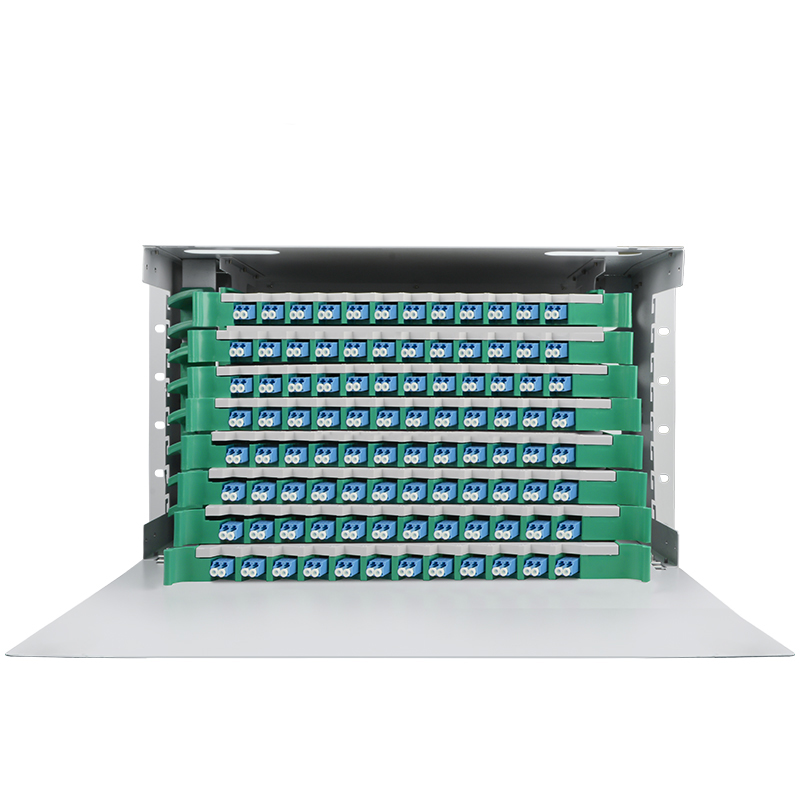

FIBER OPTIC DISTRIBUTION FRAME 12 24 48 72 96 WAY ODF
Product Description
- Standard size, light weight, and reasonable structure

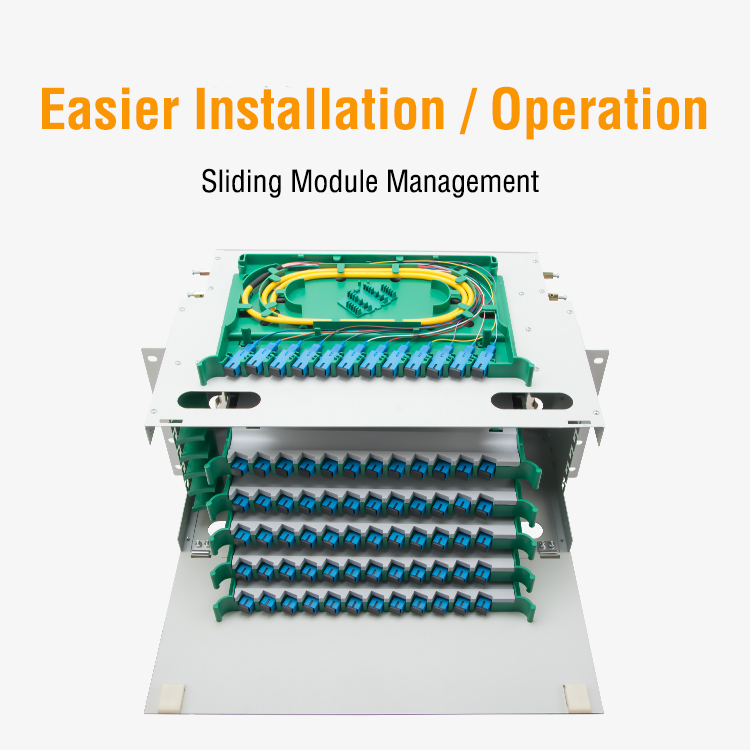

- Splice tray inside changeable
- Can be used in 19'', 23'' standard distribution frame
- Suitable for ribbon and single fiber
- Various panel plates to fit different adapter interfaces
- Front mark on the plate is easy for identification and operation
- 24C, 36C, 48C, 72C, 96C optional, with or without fiber optic pigtails and adapters
- Easy for management and operation
| Product Name |
Fiber ODF |
| No. of Adapter/Port |
12 / 24 / 48 / 72 / 96 optional |

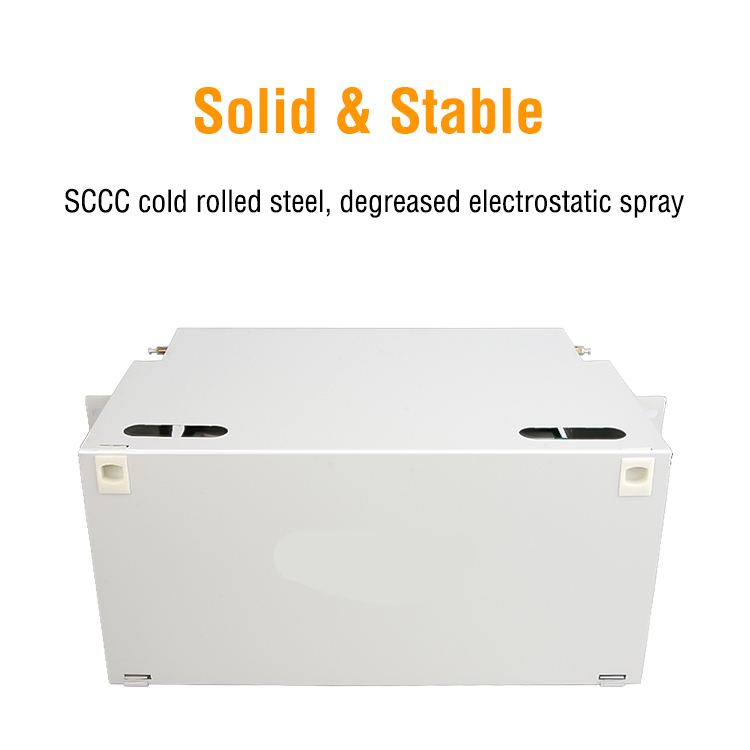

| Material |
Cold Rolled Steel or Aluminum |
| Panel Connector |
SC LC ST FC |
| Type |
Sliding / Fixed |
| Dimension |
19'' 23" 1U / 2U / 3U / 4U |
| Thickness |
1.0 / 1.2 / 1.5 mm |
| Storage Temperature |
-45°C ~ +65°C |
| Environmental Temperature |
-25°C ~ +55°C |
| Atmosphere Pressure |
70 ~ 106 Kpa |
MORE SC/LC/ST/FC APC/UPC 12 24 48 72 96 are available
Frequently Asked Questions
Q: What capacities are available for this Fiber Optic Distribution Frame?
A: The ODF is available in various standard configurations including 12, 24, 48, 72, and 96 core ports, compatible with 1U, 2U, 3U, and 4U chassis setups.
Q: Can this ODF fit into standard server racks?
A: Yes, it is fully compliant with standard 19-inch and 23-inch distribution frames, network cabinets, and server racks.

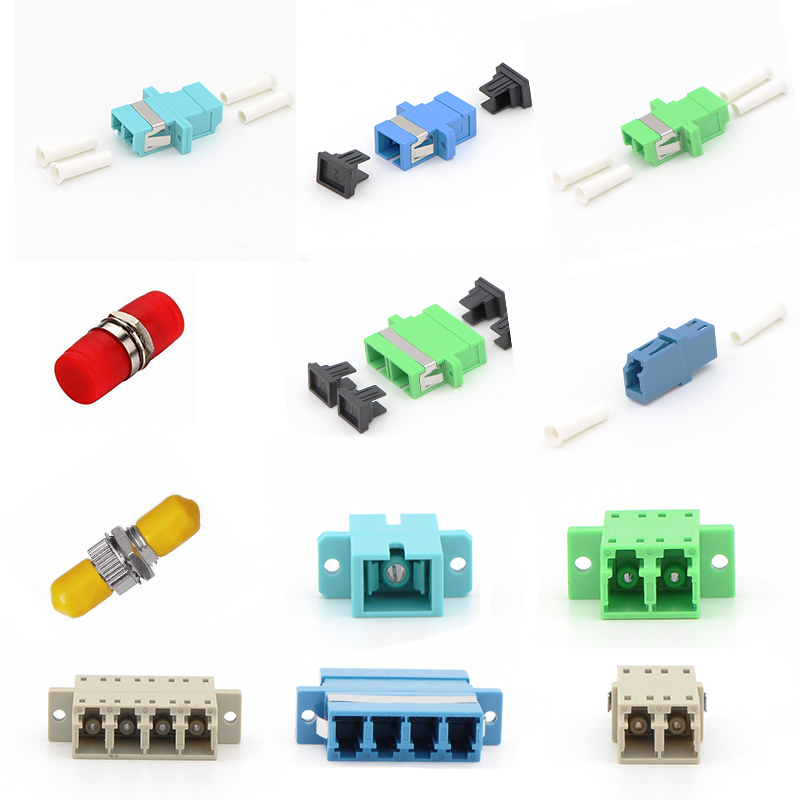

Q: Which fiber optic adapter types are supported?
A: Our interchangeable adapter panels accommodate SC, LC, ST, and FC connectors with both APC and UPC polishing types.
Q: What is the primary construction material of the unit?
A: The distribution frame is constructed using durable Cold Rolled Steel or lightweight Aluminum, available in 1.0mm, 1.2mm, and 1.5mm material thicknesses.
Q: Does the unit come pre-loaded with pigtails and adapters?
A: The unit can be supplied fully loaded with adapters and fiber optic pigtails or ordered as an empty chassis based on your deployment requirements.

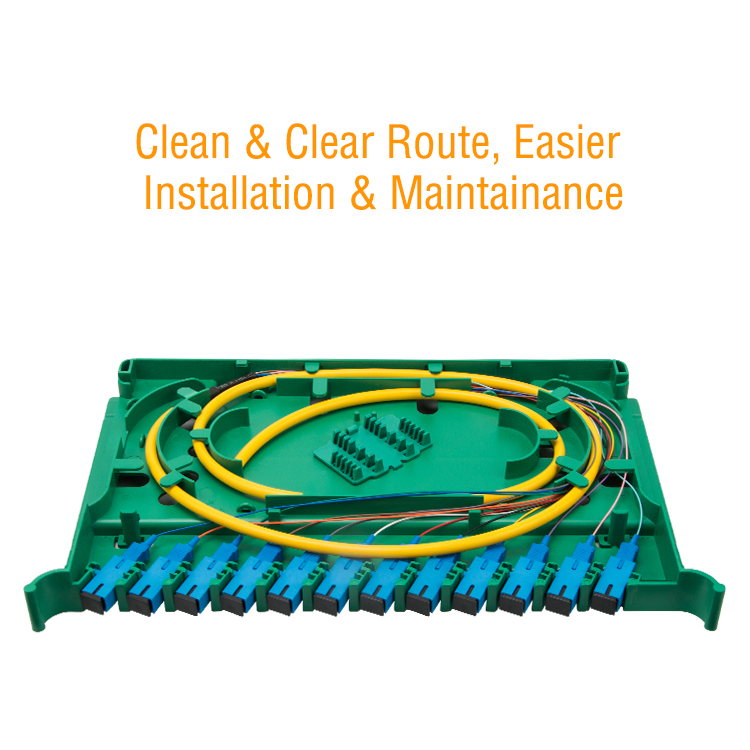

Q: Is the internal splice tray removable or adjustable?
A: Yes, the splice trays inside are modular and changeable, allowing flexible cable management and easy maintenance for both ribbon and single-strand fibers.
